Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: TOPLD
  • Model Number: KPC
  • Product Name: Heavy load boiler factory rail transfer for factory transfer
  • Color: Customized
  • Application: shipbuilding,Industry Filed
  • Material: Q235
  • Capacity: 1-300ton for boiler factory rail transfer
  • Certificates: CE ISO SGS
  • Warranty: 12 Months for boiler factory rail transfer
  • Running speed: 0-20m/min
  • Power supply: Busbar power
  • Advantage: Customized, professional manufacturing

Packaging & Delivery

Packaging Details The whole boiler factory rail transfer is packed by tarp, parts is put into the high quality wooden case.
Delivery Time Shipped in 25 days after payment

Product Description

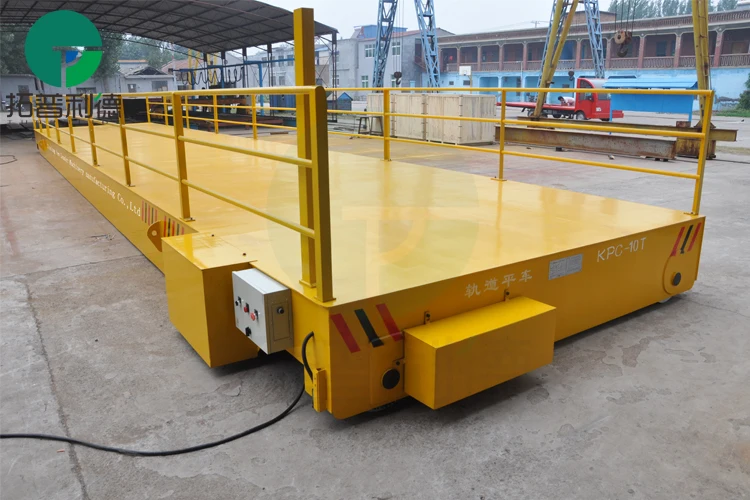

Heavy load boiler factory rail transfer for factory transfer

Brief Introduction about boiler factory rail transfer
Heavy load boiler factory rail transfer for factory transfer, literally speak, it is a boiler factory rail transfer with rails, which is the traditional and mature type boiler factory rail transfer with lower cost. More importantly, it has been new favorite in the industry usage workshop transport all over the world with hot market. Especially for the Production line; assembly line...which is the first choice for this site.
Advantage:
  • Copared with other boiler factory rail transfer, it is with low cost and high frequency;
  • The boiler factory rail transfer can be applied in many occasions, such as bad environment, high temperature, ferry...;
  • AC motor,simple structure,not limited for the using time;
  • This kinds of vehicle is powered by sliding wire, so there is not strict requirement for the construction of the railway;
  • Professional team from Xinxiang New Leader Machinery Manufacturing Co., Ltd. the proper solution can be provided once getting for your inquiry.
  • The boiler factory rail transfer are customized as per your true demand.

Parts Showing





Heavy load boiler factory rail transfer for factory transfer
Parts Showing of boiler factory rail transfer
vehicle Frame

The frame adopts box beam structure according to the crane principle and combined with the design of the vehicle. It is with large load capacity, long service lifetime. Besides, not easy deformation and can effectively ensure the smooth of the platform.

Cast Steel Wheel

The wheel, its material is ZG55, Change conveniently, install easily, the larger capacity cargoes can be transported, up to now, the largest capacity has been reach to 300T we have done among boiler factory rail transfer.

Three-in-one type Reducer, Motor and Brake

This type gear box with advantage of high efficiency, operate steadily, easy installation and maintenance, etc;

Brake is composed by brake frame, brake parts, brake operating device and so on, it is a safety device to ensure vehicle working safely;

The electric motor is AC Motor.

Dead man stop from Germany Sick

The dead man stop, with flexible reaction, can stop automatically, when meeting some obstacles, And compared with the common one,the fan-shaped sensoring zone can be realized, which makes the operation safer.

Anti-colliding Sensor

The boiler factory rail transfer can stop automatically when touch this switch as the black one showing. This design will further enhance the safe factor.







Busbar

The vehicle is usually powered by this sliding wire as the picturing showing. However, The busbar is limited by the position,it can be installed between the two rails ,The hole should be digged or it can also be placed in the channel outside the track. All are customized as per your true demand.



Application



Heavy load boiler factory rail transfer for factory transfer
Application Showing of boiler factory rail transfer

The boiler factory rail transfer is suitable for various occasions, for example,industries, (steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer work piece into the painting room Sand blasting room) Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.



For boiler factory rail transfer, it has been widely used in this field with hot market. Any interests and problems, welcome to contact with us. The proper solution can be provided to you once getting for your confirmation.





Heavy load boiler factory rail transfer for factory transfer
Working Principle of boiler factory rail transfer

The boiler factory rail transfer powered, its conducts AC380v slinding wire directly into the AC electrical control systom of the electric vehicle to let it start, stop, go forward backforward and so on. The cart gets power from the slider of the safe busbar which is moved by the carts running.The operation system is low voltage 36V power.

Of course, the power supply are chosen as per your working environment, the proper solution will be recommended to you after knowing your plant. hope rich experience (more than 15 years) can help you well.

------All customized for you
  • The boiler factory rail transfer can be equipped as per your requirement.
  • As per the transported cargoes,The V frame, U frame, rubber pad, wooden pad, weighing device...can be equipped.
  • As per the working environment, the anti-high temperature, anti-explosion, anti-rust, anti-skid measure can be adopted properly.
  • ...
Heavy load boiler factory rail transfer for factory transfer
Technical Parameter of boiler factory rail transfer





Company Information



Company Introduction
Xinxiang New Leader machinery manufacturing Co., Ltd is devoted to manufacture and sell lifting equipment, conveyor equipment, and handling equipment. We can provide and design solution to meet workshop transportation, material grading and transferring need. Our products have a wide application field including metallurgy industry, machinery manufacturing industry, mine industry, power industry, automobile assembly industry, food, pharmacy,shipyard, pigment, ceramics, chemical etc;



Our company located in Yudong Development Zone, and covered an area of 30,000 square meters. Rich design experience engineers and professional manufacturing personnel take you high quality product and service. Our products have been exported to Countries, such as USA, Germany, Netherlands, Thailand, Saudi Arabia, South Africa etc.



Certificate Showing

Customer Showing

Processing Showing

Shipment Showing

Contact Us



Contact Us

FAQ

1.Q: How about the delivery time?

A: The delivery time is often 35 working days. But the manufactured time can be in advance if urgent on the basis of quality guarantee.

2.Q: How to make us believe your product quality?

A: The product usually will be tested before delivery , and we will send video to you to check. If still worried, you can come to our factory and test it by yourself, or you can let some third-parties to do the inspection for you.

3. Q: How can I install the rail?

A: We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary, our installation engineer will go to your factory to guide the installation.

4. Q: How about the payment term?

A: Generally speaking, we accept 50%T/T deposit in advance,the balance 50% is paid by T/T before dispatch. However, 30% T/T deposit in advance,the balance 70% is paid by T/T before dispatch can be accepted for wonderful cooperation. Of course, The L/C also is OK.
