Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: TOPLD
  • Model Number: KPX
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Key word: Halls and crane tracks carriage
  • Application: Industrial Filed,Manufactory,Warehouse;Workshop; Port...
  • Color: Customized
  • Capacity: 1-300ton for halls and crane tracks carriage
  • Certificates: CE ISO SGS
  • Material: Q235
  • Warranty: 12 Months for halls and crane tracks carriage
  • Running speed: 0-20m/min
  • Power supply: Battery power
  • Advantage: Low bed ; low cost with professional manufacturing

Packaging & Delivery

Packaging Details The whole halls and crane tracks carriage is packed by tarp, parts is put into the high quality wooden case.
Delivery Time Shipped in 25 days after payment

Product Description

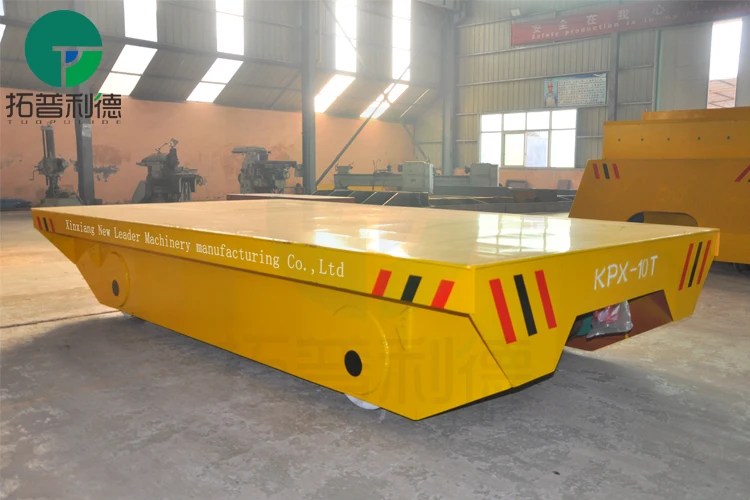

Shipbuiling halls and crane tracks carriage with 4 wheels



Brief Introduction about halls and crane tracks carriage
Shipbuiling halls and crane tracks carriage with 4 wheels, it is a halls and crane tracks carriage with rails, which is the traditional and mature type halls and crane tracks carriage . More importantly, it has been new favorite in the halls and crane tracks carriage all over the world with hot market. Especially for the workshop transportation.
Advantage:
  • The halls and crane tracks carriage can run on the Vertical rails, ”L”rails, “S”rails, arc-shaped rails...
  • The halls and crane tracks carriage  can be applied in many occasions, such as easy explosion, high temperature, ferry...
  • DC motor, stable start, starting torque, small impact to gear reducer, low voltage, long lifetime...
  • This kinds of halls and crane tracks carriage is battery powered, so only charged fully, can it run freely without limited distance.
  • Professional team from Xinxiang New Leader Machinery Manufacturing Co., Ltd. the proper solution can be provided once getting for your inquiry.
  • The halls and crane tracks carriage are customized as per your true demand.


Parts Showing



Shipbuiling halls and crane tracks carriage with 4 wheels



Parts Showing of halls and crane tracks carriage
 carriages Frame

The frame adopts box beam structure according to the crane principle and combined with the design of the carriage. It is with large load capacity, long service lifetime. Besides, not easy deformation and can effectively ensure the smooth of the platform.

Cast Steel Wheel

The wheel, its material is ZG55, Change conveniently, install easily, the larger capacity cargoes can be transported, up to now, the largest capacity has been reach to 300T we have done among rail flat car.

Maintenance Free Battery

The maintenance free battery are usually chosen to export. Compared the common one, this kinds needn’t be maintained once a regular time. And the life time is longer than the common.Besides, safe, effective,stable,environmental, are its feature.











Intelligent Charger

The Intelligent charger are a better choice for the customer. It can not only realize rapid charge and save electricity but also no damage to the battery and prolong the battery lifetime.













Dead man stop from Germany Sick

The dead man stop, with flexible reaction, can stop automatically, when meeting some obstacles, And compared with the common one,the fan-shaped sensoring zone can be realized, which makes the operation safer.

Anti-colliding Sensor

The halls and crane tracks carriage can stop automatically when touch this switch as the black one showing. This design will further enhance the safe factor.

Application



Shipbuiling halls and crane tracks carriage with 4 wheels



Application Showing of halls and crane tracks carriage

The halls and crane tracks carriage is suitable for various occasions, for example,industries, (steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer work piece into the painting room Sand blasting room) Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.



For halls and crane tracks carriage , it has been widely used in this field with hot market. Any interests and problems, welcome to contact with us. The proper solution can be provided to you once getting for your confirmation.




Shipbuiling halls and crane tracks carriage with 4 wheels
Working Principle of halls and crane tracks carriage

The halls and crane tracks carriage is battery powered . The battery is installed in the cars. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the flat car to start, stop, go forward , backward , adjust the speed and so on.



Of course, the power supply are chosen as per your working environment, the proper solution will be recommended to you after knowing your plant. hope rich experience (more than 15 years) can help you well.

------All customized for you
  • The halls and crane tracks carriage can be equipped as per your requirement.
  • As per the transported cargoes,The V frame, U frame, rubber pad, wooden pad, weighing device...can be equipped.
  • As per the working environment, the anti-high temperature, anti-explosion, anti-rust, anti-skid measure can be adopted properly.
  • ...
Shipbuiling halls and crane tracks carriage with 4 wheels
Technical Parameter of halls and crane tracks carriage





Company Information



Company Introduction

Xinxiang New Leader machinery manufacturing Co., Ltd is devoted to manufacture and sell lifting equipment, conveyor equipment, and handling equipment,rails, wheels and halls and crane tracks carriage cart . We can provide and design solution to meet workshop transportation, material grading and transferring need. Our products have a wide application field including metallurgy industry, machinery manufacturing industry, mine industry, power industry, automobile assembly industry, food, pharmacy,shipyard, pigment, ceramics, chemical etc;



Our company located in Yudong Development Zone, and covered an area of 30,000 square meters. Rich design experience engineers and professional manufacturing personnel take you high quality product and service. Our products have been exported to Countries, such as USA, Germany, Netherlands, Thailand, Saudi Arabia, South Africa etc.




Customers Showing

Packaging & Shipping



Processing Showing

Shipment Showing
Contact Us



Contact Us

FAQ

1.Q: How about the delivery time?

A: The delivery time is often 35 working days. But the manufactured time can be in advance if urgent on the basis of quality guarantee.

2.Q: How to make us believe your product quality?

A: The product usually will be tested before delivery , and we will send video to you to check. If still worried, you can come to our factory and test it by yourself, or you can let some third-parties to do the inspection for you.

3. Q: How can I install the rail?

A: We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary, our installation engineer will go to your factory to guide the installation.

4. Q: How about the payment term?

A: Generally speaking, we accept 50%T/T deposit in advance,the balance 50% is paid by T/T before dispatch. However, 30% T/T deposit in advance,the balance 70% is paid by T/T before dispatch can be accepted for wonderful cooperation. Of course, The L/C also is OK.
